The Evolution of the Advanced Conductor: Origins and Modern Developments

In early February, Chris Wright — the new US Secretary of Energy — issued his first order focused on the US Department of Energy and America's power grids. His priorities entail strengthening the nation’s grid, “including the backbone of the grid, our transmission system.” He asserts, “This is an imperative as we consider current and anticipated load growth on our nation’s electric utilities. Moreover, after two decades of very slow demand growth, electricity demand is forecast to soar in the coming years."

It's a familiar refrain for grid operators around the world, burdened by aging transmission infrastructure, fast-growing electricity demand, and reliability and resilience concerns in the face of increased extreme weather risk. With these mounting challenges, utilities need solutions that are not only effective but also economical. The next generation of advanced conductors have emerged as the right solution, at the right time. This article will take a closer look at their evolution, including how utilities are deploying them today to address the grid's most pressing needs.

Century-Old Conductor Technology Remains Common Today

Aluminum Conductor Steel Reinforced (ACSR) technology, invented in the early 1900s,  combines a steel core with aluminum outer strands — a reflection of the limited materials available during this era. This design emerged from the materials limitations of its era - the steel wasn't strong enough on its own, requiring strength contribution from the hard aluminum strands to achieve adequate conductor strength. Though developed over a century ago, ACSR remains the standard overhead conductor technology today.

The key limitation of ACSR comes from its use of hard-drawn aluminum. At temperatures above 93°C, this hard-drawn aluminum permanently converts to its softer, annealed state. This metallurgical change causes permanent loss of tensile strength, resulting in increased sag and reduced line clearances. This temperature ceiling effectively limits current-carrying capacity, prompting the search for high-temperature alternatives. Enter: ACSS technology.

In the 1970s, Aluminium Conductor Steel Supported (ACSS) technology offered a way forward, leveraging advances in the steel industry that enabled higher-strength steel cores. These stronger cores could fully support mechanical loads without relying on the aluminum strands for strength, allowing the use of annealed aluminum strands instead of hard-drawn aluminum. This eliminated ACSR’s 93°C temperature limitation and increased capacity.

However, this solution created a challenge of its own: excessive thermal sag. The steel core's high coefficient of thermal expansion meant that as temperatures increased, the conductor experienced substantial sagging. To maintain required clearances, utilities needed taller structures and stronger supports. These increased structure costs limited ACSS adoption primarily to special applications where increased capacity justified the additional investment.

This limitation sparked the search for conductor materials with low thermal expansion that could provide high-temperature operation without excessive sag.

A Step Forward: First-Generation Advanced Conductors

Recognizing the need, composites innovator Brandt Goldsworthy and his team pioneered the idea of composite core conductors in the 1990s. These conductors replaced steel cores with engineered composites made from ceramic or carbon fibers.

The composite cores provided both high strength and low thermal expansion, enabling high-temperature operation without excessive sag.

However, these first-generation advanced conductors never achieved widespread adoption. They gained a reputation for being delicate and difficult to work with, requiring specialized installation procedures and equipment. Utilities were concerned about the risk of conductor damage during installation and long-term reliability issues. When combined with significantly higher costs compared to traditional conductors, these factors limited their use primarily to niche applications where their unique properties justified the additional expense and complexity.

The industry clearly needed a solution that could deliver advanced conductor performance while maintaining the safety and reliability of traditional conductors.

Technology for the Modern Grid: Next-Generation Advanced Conductors

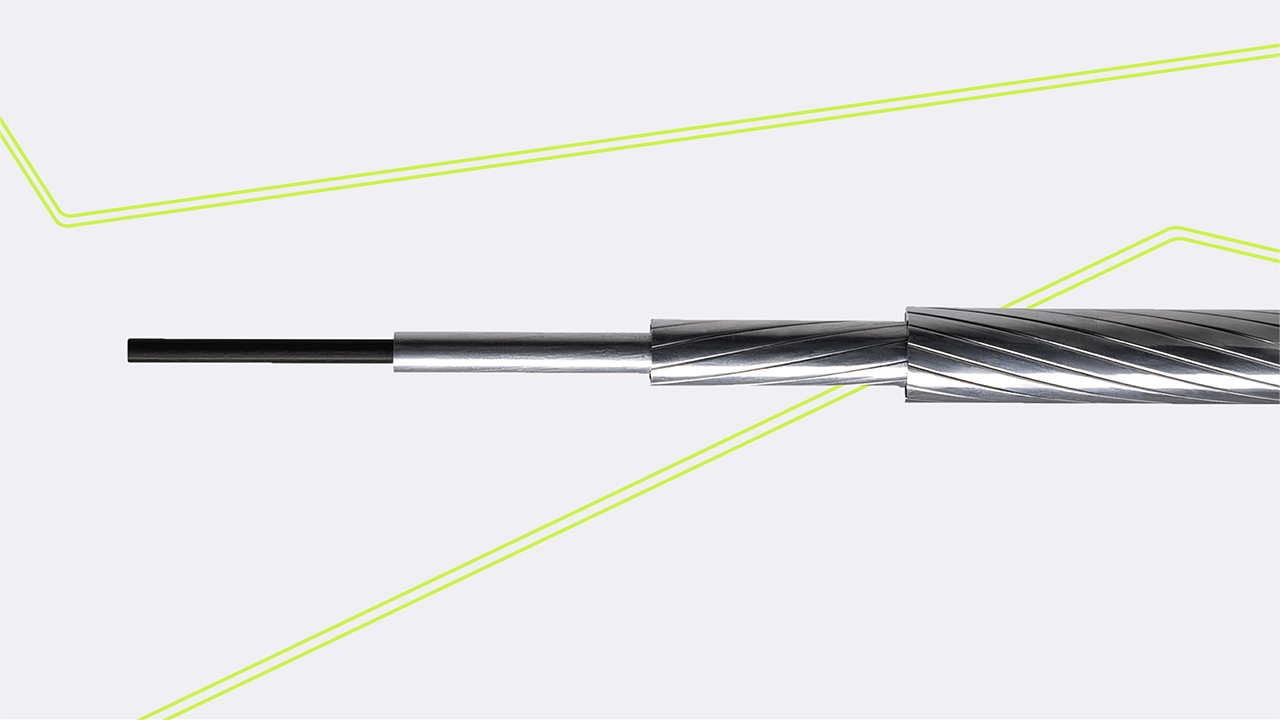

Hence, the birth of Aluminum Encapsulated Carbon Core (AECC) technology. AECC technology combines advanced conductor performance with traditional conductor safety and reliability. The design uses a pre-tensioned carbon fiber core protected by a seamless aluminum encapsulation layer, paired with annealed aluminum outer strands.

This configuration delivers 2-3 times the capacity of ACSR using the same structures, with half the line losses, while maintaining low thermal sag at high operating temperatures. The ability to achieve this increased capacity without structure modifications or replacements provides utilities with a cost-effective path to grid modernization.

The pre-tensioned carbon core helps prevent compression failures during bending, while the aluminum encapsulation serves multiple functions: providing mechanical cushioning that enables the use of standard compression fittings and installation methods, and creating a seamless environmental barrier that protects the carbon fiber from moisture, oxygen, and other degradation factors throughout the conductor's service life.

By addressing the fundamental limitations of earlier designs at their source, AECC represents the first viable mainstream alternative to ACSR in over a century. This combination of advanced performance, industry standard installation, and long-term reliability enables utilities to confidently deploy this technology across their systems, not just for niche applications.
