The solid fiberglass product features a two-piece assembly.

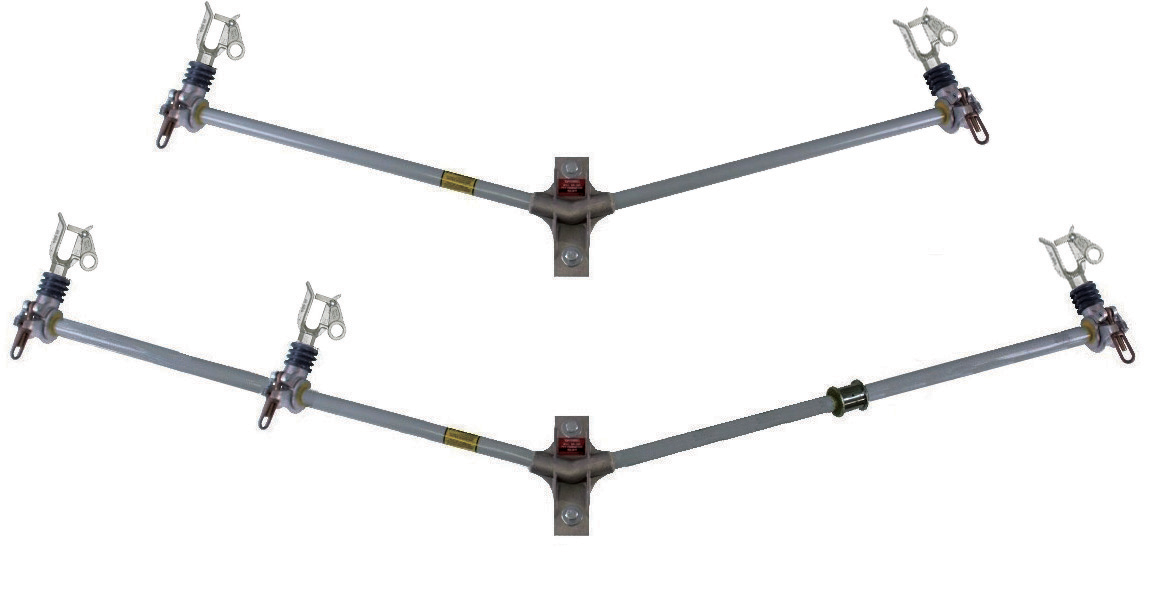

The Temporary Cross Arm, which is manufactured from solid fiberglass, offers a load capacity of 150 lbs per side with a 34.5 KV rating phase to phase.
The arm includes two standard conductor holders with insulators that accept conductors up to 1 1/16-in. O.D. In addition, the conductor latches are hot stick operable and are also available with larger 2 5/8-in. conductor holders.
The two-piece assembly makes installation easy and fast. The mounting base includes a ratchet and strap assembly that is lightweight, while the U-Shape design fits conveniently over the pole top pin. Captive bolts and washers on the arm assembly enable the arm to be mounted to the base without the need for tools.
For additional information about the Hastings Temporary Cross Arm, visit page 312 of Hastings’ online catalog or search for products 5051 and 5054. You can also visit www.hfgp.com.
