Circuit Breaker Analyzer Includes 200 A Pure DC Microhmmeter

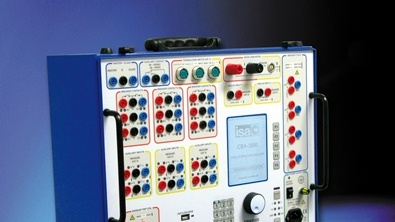

ISA has introduced the circuit breaker analyzer CBA 2000, a unique test set for the complete test of all circuit breakers.

It is a powerful timing and motion analyzer with built-in 200 A pure DC microhmmeter for static and dynamic contact resistance tests. CBA 2000 is a stand-alone unit with a large graphical display. The unit is supplied with TDMS analysis software.

Main CBA 2000 characteristics:

• Built-in 200 A microhmmeter
• Up to 18 main and 18 resistive contact inputs
• 12 auxiliary timing inputs
• Up to 4 trip/close coils control
• Motion and speed analyzer
• Static and dynamic contact resistance measurement
• Digital transducer option for motion analysis
• Minimum trip coil test
• Circuit Breaker test with both sides connected to ground (BSG option).
• Large graphical high brightness sunlight display

CBA 2000 has been designed to ensure safe and reliable operations in the noisy environment of EHV and HV substations.
