Proximity Voltage Tool Detects Voltage on Most Elbow Test Points
Aug. 19, 2014
When voltage is detected, the PRX gives an audible and visual indication with a typical detection distance of 10 inches.

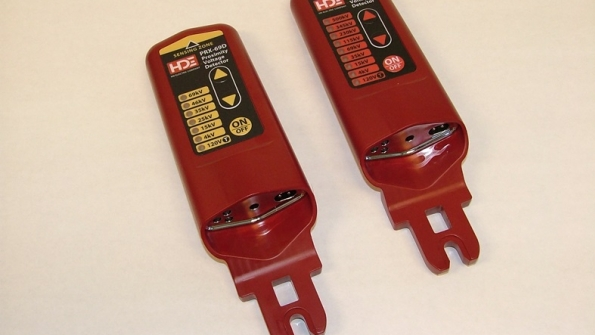

HDE's PRX Proximity Voltage Detectors are non-contact detectors with voltage ranges from 120V up to 500kV. When voltage is detected, the PRX gives an audible and visual indication with a typical detection distance of 10 inches. The PRX has the ability to detect voltage on most elbow test points at the 120V setting. With a rechargeable internal battery, the PRX can be charged quickly from 12VDC automotive outlets or from 115-240VAC.
There are models available to detect voltages from elbow test points at the 120V setting up to 500kV transmission voltages:
PRX-500 - 9 range settings from 120V to 500kV
PRX-69D - 7 range settings from 120V to 69kV
Custom models are available, the PRX-4 was created with 2 range settings from 50V to 4kV
Proximity Voltage Detector Features
Sealed to resist water penetration in typical outdoor environments
Voltage ranges from 120VAC up to 500kVAC
Detects voltages typically 10" or greater from source and most elbow test points
Rechargeable battery with quick recharge - 15 minutes for a full day of use
Weighs less than 1 pound
Loud beeper and LED lights indicate voltage
